Illume

• Light minimal frameless system

• True curve & faceted applications with security functionality

• Supported glass thicknesses:

• 3/8”, and 1/2”; tempered & laminated

• Specialty glass/alternate materials available upon request

• Supported door types: Swing and Sliding doors

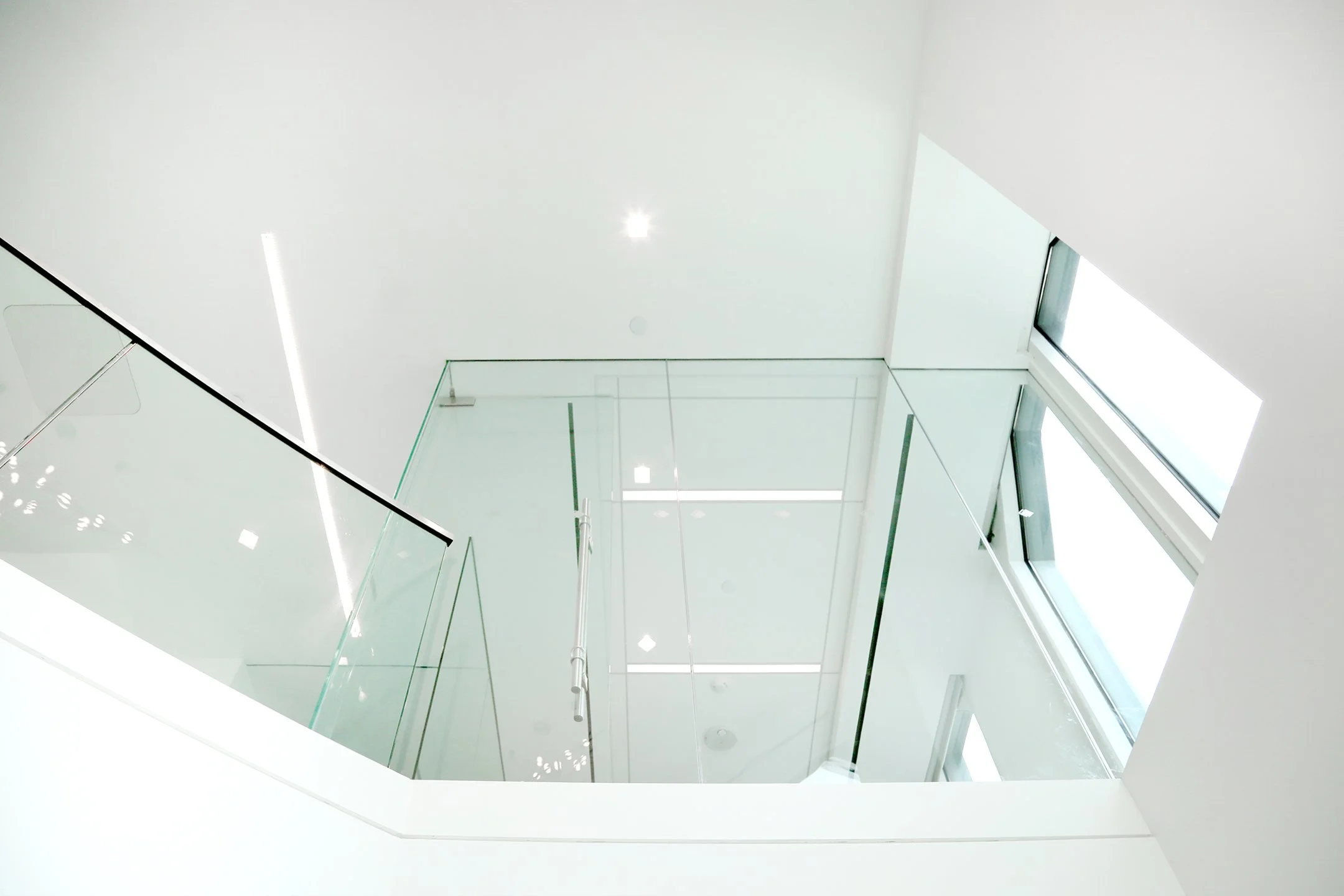

• Frameless Glass

• Lead time: 2 to 3 weeks for stocked options (5 to 8 weeks for

non-standard product)

• Standard Trim Height: 1” bottom track, 1-3/4” top track; Recessed or

Surface Mounted

• Standard Trim Depth: 1” top & bottom track

• Standard Max Vertical Height: 10’-0” (additional height options over 10’ with non-standard glass thicknesses)

• Butt seamed glass-to-glass VHB connections

• Standard 3-way return condition with Polycarbonate Channel

• Tolerance: 3/8” over 10’-0”

• Based on thickness & type of glazing installed.

• Lack of vertical framing members creates gaps at door/sidelite connection

• Stock Colors: clear and black anodized

• Additional color options: polished and satin brass, bronze, and stainless steel cladding and painted finishes available
